    DO 201AD BY255 Rectifier Diode 3a 1300V

    Ask Lasest Price
    Brand Name : trusTec
    Model Number : BY251 THUR BY255
    Certification : ROHS
    Price : Negotiable (EXW/FOB/CNF)
    Payment Terms : T/T
    Supply Ability : 800KK PCS per month
    Delivery Time : 10 work days fresh products
    • Product Details
    • Company Profile

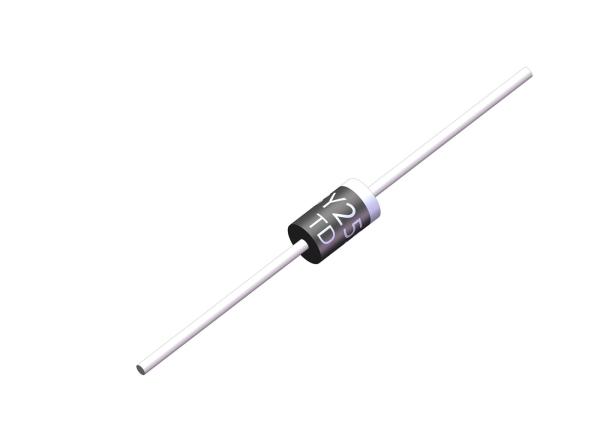

    DO 201AD BY255 Rectifier Diode 3a 1300V

    1300V 3 Ampere Genaral Purpose Rectifier Diode BY255 DO-27 DO-201AD Plastic Body


    Product Size


    MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
    Ratings at 25 C ambient temperature unless otherwise specified.
    Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.
    Type

    Maximum

    repetitive

    peak

    reverse

    voltage

    Maximum

    average

    rectified

    current

    Forward

    Peak Surge

    Current@8.3ms

    single half-wave

    Maximum forward

    voltage@TA=25℃

    Maximum reverse

    current

    @VRRM TA=25℃

    Case Style
    VRRMI(AV)IFSMVF@IFIR
    VAAVAμA
    BY25120031501.035DO-27
    BY25240031501.035DO-27
    BY25360031501.035DO-27
    BY25480031501.035DO-27
    BY255130031501.035DO-27
    FEATURES
    The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
    Construction utilizes void-free molded plastic technique
    Low reverse leakage
    High forward surge current capability
    High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension

    MECHANICAL DATA
    Case: JEDEC DO-201AD molded plastic body
    Terminals: Plated axial leads, solderable per MIL-STD-750,
    Method 2026
    Polarity: Color band denotes cathode end
    Mounting Position: Any
    Weight:0.04 ounce, 1.10 grams

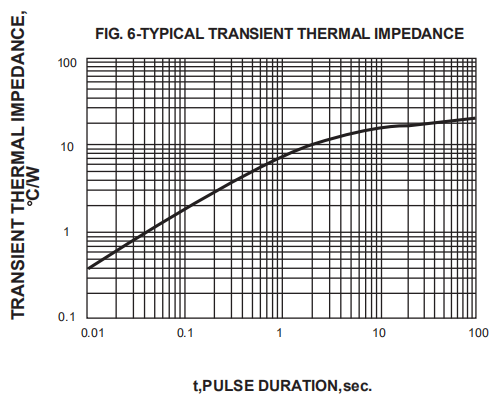

    Characteristic Curves
