10A10 10 Amp Standard Rectifier Diode 1000V R 6 Package

Large Current General Purpose Standard Silicon Rectifier Diode 10A10 10Amp 1000V R-6

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	10A05	10A1	10A2	10A4	10A6	10A8	10A10	UNITS
Maximum repetitive peak reverse voltage	VRRM	50	100	200	300	400	500	600	VOLTS
Maximum RMS voltage	VRMS	35	70	140	210	280	350	420	VOLTS
Maximum DC blocking voltage	VDC	50	100	200	300	400	500	600	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TA=75℃	I(AV)	10.0							Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	500							Amps
Maximum instantaneous forward voltage at 3.0A	VF	1.0							VOLTS
Maximum DC reverse current TA=25 at rated DC blocking voltage TA=100℃	IR	10.0 100							µA
Typical junction capacitance (NOTE 1)	CJ	150.0							pF
Typical thermal resistance (NOTE 2)	RθJA	10.0							℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +175							℃

10A05 THRU 10A10

GENERAL PURPOSE SILICON RECTIFIERS

Reverse Voltage - 50 to 1000 Volts Forward Current - 10 Ampere

Product Drawing

FEATURES

The plastic package carries Underwriters Laboratory
Flammability Classification 94V-0
Construction utilizes void-free
molded plastic technique
Low reverse leakage
High forward surge current capability
High temperature soldering guaranteed:
260 C/10 seconds,0.375”(9.5mm) lead length,
5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: R-6 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.072 ounce, 2.05 grams

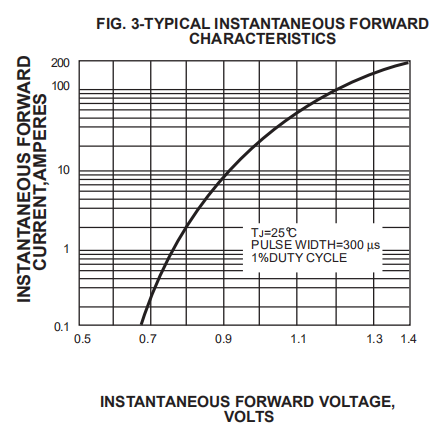

Characteristic Curves
