    Rl257 Standard Rectifier Diode 1000v 2.5a

    Ask Lasest Price
    Brand Name : trusTec
    Model Number : RL251 THUR RL257
    Certification : ROHS
    Price : Negotiable (EXW/FOB/CNF)
    Payment Terms : T/T
    Supply Ability : 800KK PCS per month
    Delivery Time : 10 work days fresh products
    • Product Details
    • Company Profile

    Rl257 Standard Rectifier Diode 1000v 2.5a

    2.5AMPERE 1000VOLT GENERAL PURPOSE SILICON RECTIFIERS DIODE RL257 PLASTIC SILICON DIODE 50K CARTON
    RL251 THRU RL257
    GENERAL PURPOSE SILICON RECTIFIERS
    Reverse Voltage - 50 to 1000 Volts Forward Current - 2.5 Ampere

    Type

    Maximum

    repetitive peak

    reverse voltage

    Maximum

    average

    rectified

    current

    Forward

    Peak Surge

    Current@8.3ms

    single half-wave

    Maximum forward

    voltage@TA=25℃

    Maximum reverse

    current

    @VRRM TA=25℃

    Case Style
    VRRMI(AV)IFSMVF@IFIR
    VAAVAμA
    RL251502.51201.02.55R-3
    RL2521002.51201.02.55R-3
    RL2532002.51201.02.55R-3
    RL2544002.51201.02.55R-3
    RL2556002.51201.02.55R-3
    RL2568002.51201.02.55R-3
    RL25710002.51201.02.55R-3

    FEATURES
    The plastic package carries Underwriters Laboratory Flammability Classification 94V-0
    Construction utilizes void-free molded plastic technique
    Low reverse leakage
    High forward surge current capability
    High temperature soldering guaranteed: 260 C/10 seconds,0.375”(9.5mm) lead length, 5 lbs. (2.3kg) tension
    MECHANICAL DATA

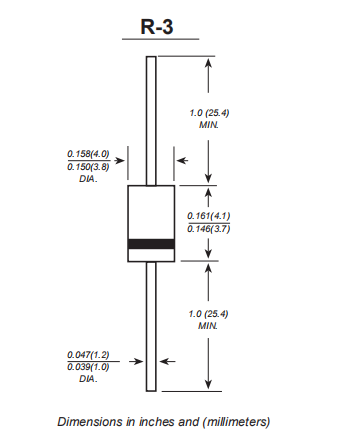

    Case: R-3 molded plastic body
    Terminals: Plated axial leads, solderable per MIL-STD-750, Method 2026
    Polarity: Color band denotes cathode end
    Mounting Position: Any
    Weight:0.021 ounce, 0.58 grams
    Characteristic Curves
