SB280 SB2100 Sb260 Schottky Diode Replacement 2A 20V To 200V DO 15

2A 20V to 200V DO-15 Axial Schottky Barrier Rectifier Diode SB240 SB260 SB280 SB2100

RoHS COMPLIANT

SB220 THRU SB2200

SCHOTTKY BARRIER RECTIFIERS

Reverse Voltage - 20 to 200 Volts Forward Current - 2.0 Ampere

Product Drawing

MAXIMUM RATINGS

	SYMBOLS	SB 220	SB 230	SB 240	SB 250	SB 260	SB 270	SB 280	SB 290	SB 2100	SB 2150	SB 2200	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum RMS voltage	VRMS	14	21	28	35	42	49	56	63	70	105	140	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	50	60	70	80	90	100	100	200	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1)	I(AV)	2.0											Amp
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	60.0											Amps
Maximum instantaneous forward voltage at 2.0A	VF	0.55			0.70		0.85					0.95	Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	0.5									0.2		mA
	IR	10.0					5.0				2.0		mA
Typical junction capacitance (NOTE 1)	CJ	220			80								pF
Typical thermal resistance (NOTE 2)	RqJA	50.0											℃/W
Operating junction temperature range	TJ	-65 to +125					-65 to +150						℃
Storage temperature range	TSTG	-65 to +150											℃

Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-15 molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.014 ounce, 0.40 grams

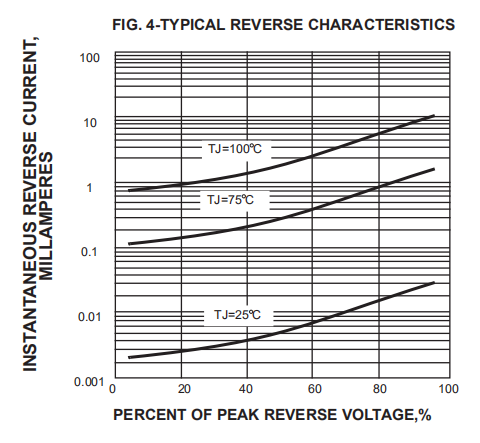

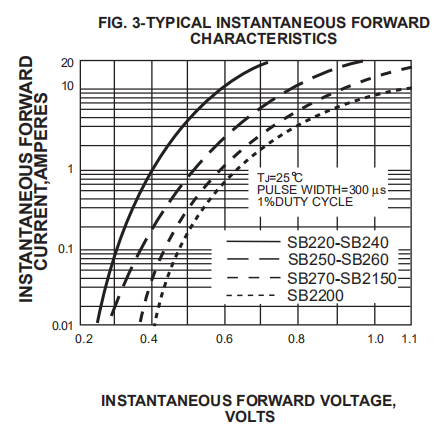

Characteristic Curves
