Product Features

MAXIMUM RATINGS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	MBR 3020 CT	MBR 3030 CT	MBR 3040 CT	MBR 3050 CT	MBR 3060 CT	MBR 3070 CT	MBR 3080 CT	MBR 3090 CT	MBR 30100 CT	MBR 30150 CT	MBR 30200 CT	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum RMS voltage	VRMS	14	21	28	35	42	49	56	63	70	105	140	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1)	I(AV)	30.0											Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	200.0											Amps
Maximum instantaneous forward voltage at 5.0A	VF	0.65			0.75		0.80					0.90	Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	0.2											mA
		20
Typical junction capacitance (NOTE 1)	CJ	400											pF
Typical thermal resistance (NOTE 2)	RθJC	2											℃/W
Operating junction temperature range	TJ,	-65 to +150											℃
Storage temperature range	TSTG	-65 to +150											℃

Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to case.

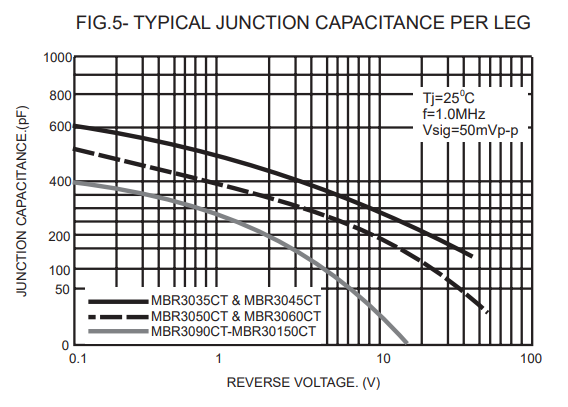

CHARACTERISTIC CURVES
