Axial Schottky Barrier Rectifier Diode 1N5819 1N5822 SR160 SR260 SR360 SR560 SB160 SB260 SB360 SB560

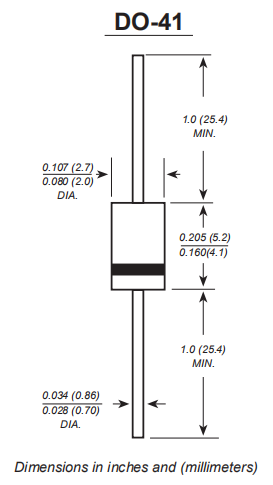

Dimension

Product Features

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for current capacitive load derate by 20%.

	SYMBOLS	1N5817	1N5818	1N5819	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	VOLTS
Maximum RMS voltage	VRMS	14	21	28	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length at TL=90 ℃	I(AV)	1.0			Amp
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	25.0			Amps
Maximum instantaneous forward voltage at 1.0A	VF	0.450	0.550	0.600	Volts
Maximum DC reverse current TA=25 ℃ at rated DC blocking voltage TA=100 ℃	IR	0.5 10.0			mA
Typical junction capacitance (NOTE 1)	CJ	110.0			pF
Typical thermal resistance (NOTE 2)	RθJA	50.0			℃/W
Operating junction and storage temperature range	TJ,TSTG	-65 to +125			℃

Note:

1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to ambient at 0.375”(9.5mm)lead length,P.C.B. mounted

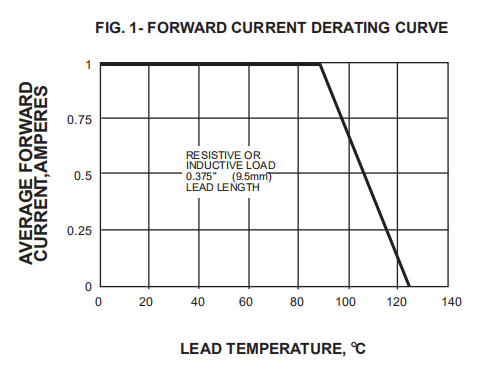

CHARACTERISTIC CURVES
