Dual Schottky Barrier Rectifier Diode MBR1060 MBR1060CT MBR1660CT MBR2060CT

Product Features

MAXIMUM RATINGS

Ratings at 25 C ambient temperature unless otherwise specified.

Single phase half-wave 60Hz,resistive or inductive load,for capacitive load current derate by 20%.

	SYMBOLS	MBR 1020 CT	MBR 1030 CT	MBR 1040 CT	MBR 1050 CT	MBR 1060 CT	MBR 1070 CT	MBR 1080 CT	MBR 1090 CT	MBR 10100 CT	MBR 10150 CT	MBR 10200 CT	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum RMS voltage	VRMS	14	21	28	35	42	49	56	63	70	105	140	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1)	I(AV)	10.0											Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	150.0											Amps
Maximum instantaneous forward voltage at 5.0A	VF	0.65			0.75		0.85					0.95	Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	0.2									1		mA
		15									20
Typical junction capacitance (NOTE 1)	CJ	550			450								pF
Typical thermal resistance (NOTE 2)	RθJC	2											℃/W
Operating junction temperature range	TJ,	-65 to +150											℃
Storage temperature range	TSTG	-65 to +150											℃

Note:1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.

2.Thermal resistance from junction to case.

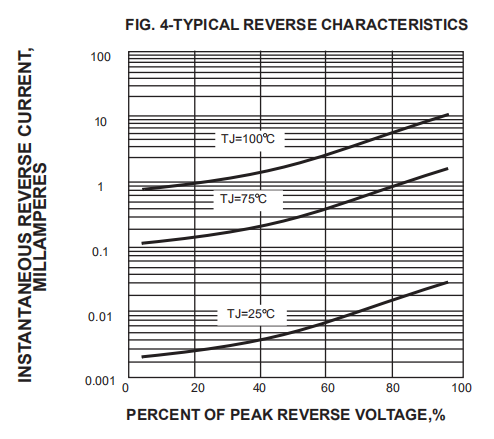

CHARACTERISTIC CURVES
