Name: 200V 3A Schottky Barrier Rectifier Diode SB340 SB3100 SB3150 SB315 SB3200
Brand: trusTec
Price: 1 USD

Add to Cart

Ammo Packing Schottky Barrier Rectifier Diode SB340 SB360 SB3100 SB3150 SB315 SB3200

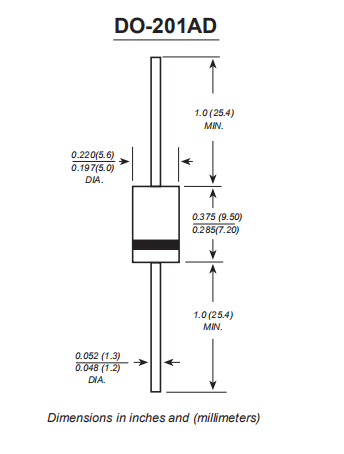

Product Drawing

MAXIMUM RATINGS

	SYMBOLS	SB 320	SB 330	SB 340	SB 350	SB 360	SB 370	SB 380	SB 390	SB 3100	SB 3150	SB 3200	UNITS
Maximum repetitive peak reverse voltage	VRRM	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum RMS voltage	VRMS	14	21	28	35	42	49	56	63	70	105	140	VOLTS
Maximum DC blocking voltage	VDC	20	30	40	50	60	70	80	90	100	150	200	VOLTS
Maximum average forward rectified current 0.375”(9.5mm) lead length(see fig.1)	I(AV)	3.0											Amps
Peak forward surge current 8.3ms single half sine-wave superimposed on rated load (JEDEC Method)	IFSM	80.0											Amps
Maximum instantaneous forward voltage at 3.0A	VF	0.55			0.70		0.85					0.95	Volts
Maximum DC reverse current TA=25℃ at rated DC blocking voltage TA=100℃	IR	0.5									0.2		mA
	IR	20.0					10.0				2.0		mA
Typical junction capacitance (NOTE 1)	CJ	250			160								pF
Typical thermal resistance (NOTE 2)	RqJA	40.0											℃/W
Operating junction temperature range	TJ,	-65 to +125					-65 to +150						℃
Storage temperature range	TSTG	-65 to +150											℃

FEATURES

The plastic package carries Underwriters Laboratory

Flammability Classification 94V-0

Metal silicon junction,majority carrier conduction

Low power loss,high efficiency

High forward surge current capability

High temperature soldering guaranteed:

260 C/10 seconds,0.375”(9.5mm) lead length,

5 lbs. (2.3kg) tension

MECHANICAL DATA

Case: JEDEC DO-201AD molded plastic body

Terminals: Plated axial leads, solderable per MIL-STD-750,

Method 2026

Polarity: Color band denotes cathode end

Mounting Position: Any

Weight:0.04 ounce, 1.10 grams

Characteristic Curves
